Product Overview
Our Floating Solar panel Mounting System is designed for calm water surfaces such as reservoirs,lakes, and mining subsidence zones, Engineered for high strength, low maintenance, and easy deployment, it meets the growing demand for efficient land-free solar solutions.
System Components and Materials
Floats: Raw materials of our floats is high density polyethylene.High-density polyethylene material features high corrosion resistance, strong weather resistance and UV aging resistance.
Brackets: The material of our brackets is galvanized magnesium-aluminum. This material has excellent corrosion resistance and can prevent rust for up to 25 years.The model of the materials model is S350GD.
Bolts,nuts,and washers
Our nuts, bolts and washers are made of 304 stainless steel.
The connection method of the floats is plug-in type.
Supported solar modules' types
The size of our floats meets the requirements of all the solar modules.
|
Solar panel |
power |
size |
|
Solar panel |
500w-600w |
2278mm*1134mm*35mm/30mm |
|
Solar panel |
600W-720w |
2382mm*1303mm*35mm/30mm |
Application scenarios
Rigid Floating Solar panel Mounting System can be used in these areas as following:
- Reservoirs, fish ponds, and areas with complementary agriculture and solar power
- Subsidence area of coal mine
- Water area of industrial factory
Key features and advantages
High structural strength
Uses galvanized steel/aluminum with reinforced joints to withstand up to 50m/s wind and 1.5kn/㎡snow load, verified through wind tunnel testing.
01
High installation efficiency
Modular design with pre-assembled sections reduces installation time by 30% compared to conventional floating systems.
02
Low transportation cost
Compact design allows stacking up to 30% more units per container, reducing logistics cost.
03
Strong corrosion resistance
All exposed parts use hot-dip galvanized material (>65μm coating) tested for 1,000 hours salt spray resistance.
04
High layout flexibility
Supports east-west and south-north alignment, suitable for various panel sizes and site shapes.
05
Installation,operation and maintenance
Modular design, on-site installation
Because it is a modular design, there is no need for large-scale construction machinery. Just assemble the floats and solar modules on the shore.
The number of installation workers and work efficiency
Under normal circumstances, a team of 15 people can install 200KW per day.
Convenience of operation and maintenance
When solar modules are damaged or need to be cleaned, our structure is very suitable for maintenance personnel to operate conveniently, as there are personnel operation and maintenance walkways. Moreover, the floating body has a buoyancy of 150 kilograms per square meter.
Specification Summary Table
|
Item |
parameters |
|
Supported solar modules |
182/210 mono crystalline silicon module, suitable for power range 500W-720W |
|
System design life |
≥25years |
|
Raw materials of floats |
HDPE(high density polyethylene) |
|
Brackets materials |
galvanized magnesium-aluminum S350GD |
|
Wind resistance grade |
50m/s |
|
Snow load |
1.5KN/㎡ |
|
Installation tilt angle |
0⁰-15⁰ customized available |
|
Maximum bearing load of floats |
150kg/㎡ |
Production capacity
A.The annual production capacity of our factory reaches 200MW.
B.Our products are processed by blow molding.
C.The core element of our product is the formula of the proportion of masterbatch and modified material.
Certification and quality control
To ensure the quality of our Rigid Floating Solar panel Mounting System,we have passed test such as TUV and wind tunnel experiments.
We have obtained ISO9001 quality certification and TUV Rheinland certification from Germany.
Export experience and customer cases
Our products are sold around the world, including Thailand in Southeast Asia and Kenya in Africa.
The floating solar support system is applied in areas such as ponds, lakes, coal subsidence zones, and reservoirs. Its main feature is that it is suitable for places with slow water flow, calm waves, low pH value, weak corrosion , and little destructive force to the support system.The support structure is easy to construct, has low cost, small volume and increases investment returns. It is beneficial for both EPC units and owners.

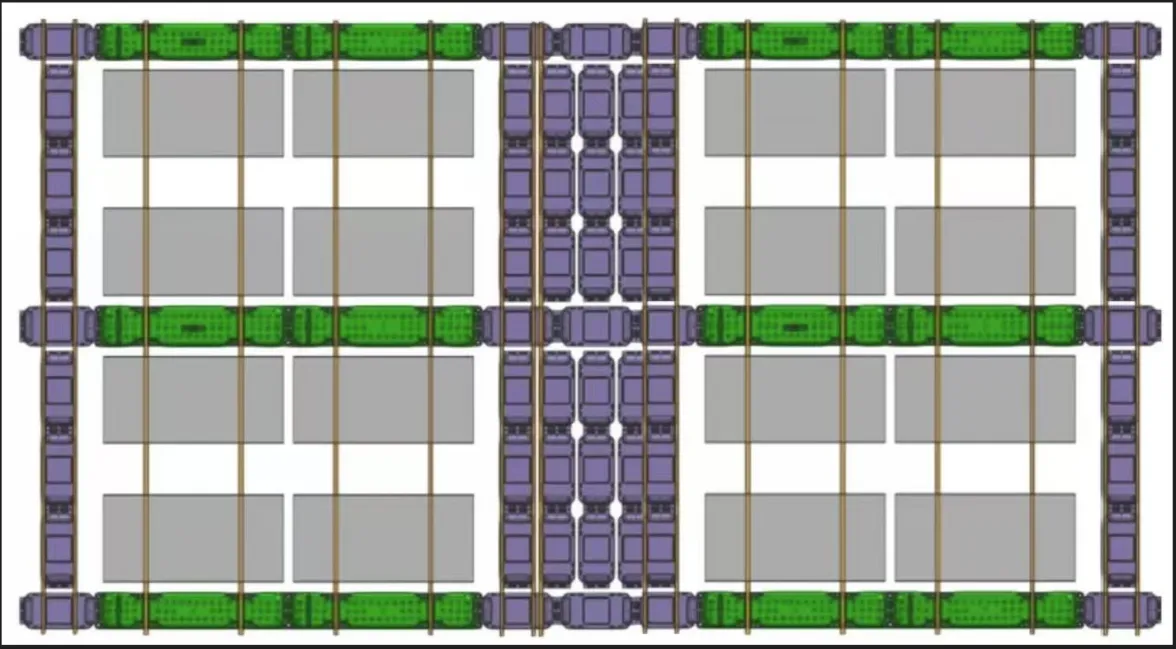

Main items of the floating solar panel mounting system
|
Item no. |
Part name |
picture |
Item no. |
Part name |
picture |
|
1 |
Walkway floater |
|
7 |
Rear supporting leg |
|
|
2 |
Equipment floater |
|
8 |

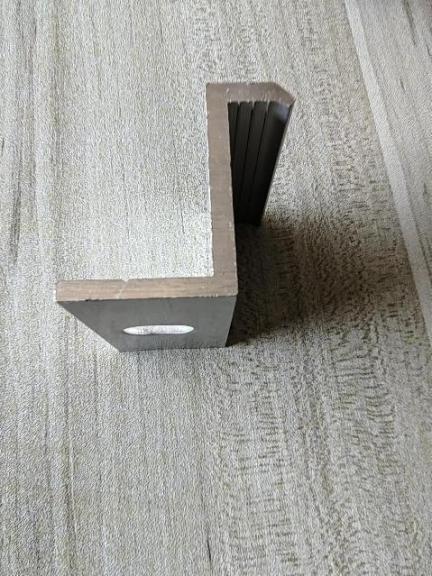

Solar panel clamp |
|
|
3 |
Connecting floater |
|
9 |
Bolts and nuts |
|
|
4 |
Connecting rod |
|
10 |
North-south anchor truss |
|
|
5 |

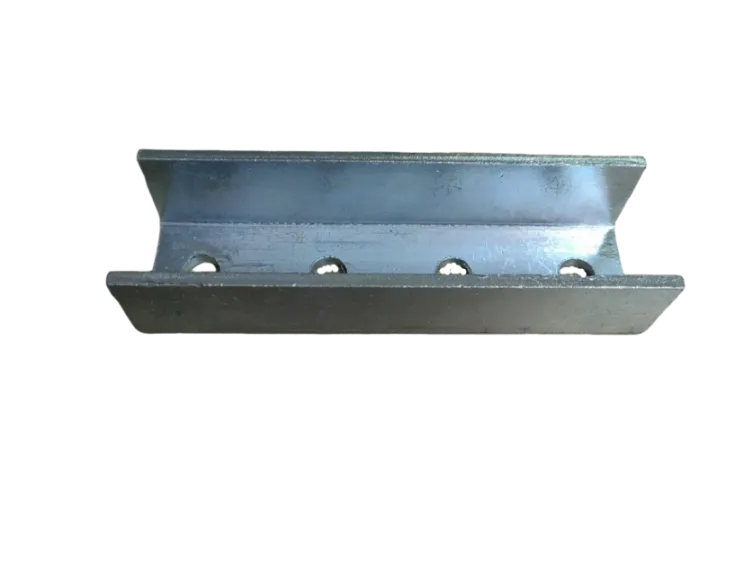

Connecting piece |
|
11 |
East west anchor truss |
|
|
6 |
Front supporting leg |
|
Strategic Partners with Foner Solar
120 customers from more than 10 countries in the past 3 years.
Our Honor
What can we bring for you?
- We can bring you good investment return.
- Better floating solar power plant safety.
- Make human and environment in harmony.
After we collaborate, we can send engineers to the site for free to guide the installation, or provide technical guidance online at any time. If the installation capacity is above 1MW, a 5% discount can be applied.
We are in Thailand
We have worked with our old Thai client many times. It is because the client was satisfied with our services that we received the repeat orders.
Technical Parameter
|
Solar PV Mounting System Name |
MRac Floating PV Mounting System G4S |
Design Standard |
AS/NZS 1170,DIN 1055,JIS C8955:2017, |
|
Installation Site |
Lake, Reservoir |
International Building Code IBC 2009, |
|
|
Water Surface Clearance |
330-350mm |
California Building Code CBC 2010; |
|
|
Tilt Angl |
5°,10°,15° |
Material |
HDPE |
|
Wind Load |
51m/s |
Fastener |
Zinc-Nickle Alloy & HDPE & Q235B |
|
Snow Load |
1KN/m2 |
Small Components |
AL6005-T5(Anodized) |
|
Applicable Solar Module |
Framed or Frameless |
Color |
Gray or Customized |
|
Panel Orientation |
Landscape, Double Row In The Same/ Symmetrical Facing |
Warranty |
10-Year Warranty + |
|
Panel Type |
Frame or Double Glass |
Bearing Weight |
Module Floater 70KG/m2,Walkway Floater 155KG/m2 |
|
Certified by TUV, SGS and qualified consultants in AU, JP |
|||
Key Components of Floating Solar mounting System
Solar Panels
The solar PV panels or modules are central to floating solar farms, which house multiple solar cells capable of transforming sunlight into direct current (DC) electricity.
01
Floating Platforms
Solar panels are attached to floating, buoyant structures or platforms to ensure the solar systems float on top of the surface of the water.
02
Anchoring System
The anchoring secures the floating platforms, preventing any wind or water drift, while maximizing stability and positioning towards the sun.
03
Solar Inverters
The electrical device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC) electricity, which the electrical grid uses.
04
Electrical Infrastructure
The AC electricity from the inverters is conveyed through electrical cables to a substation or distribution node, ready for integration into the electrical grid for wider dissemination or allocated for local consumption.
05
Technical Information
|
Name |
Photovoltaic Floating Mounting PV Frames System |
|
Main Material: |
HDPE |
|
Wind Speed |
51m/s |
|
Snow Load |
1KN/m² |
|
Tilt Angle |
10° or 15° |
|
Water Depth |
330-350 |
|
Module Type |
Frame or Double Glass |
|
Panel Orientation |
Landscape,Double Row in the same/symmetrical Facing |
|
Color: |
Grey or Blue or Customized |
|
Bearing Weight |
Main Floater 70KG/㎡ |
|
Installation Site |
Lake,Reservoir |
|
Duration |
25years |
