Product Overview
Offshore solar floating support system is a solar photovoltaic panel support structure developed by our company for use in photovoltaic power stations on the sea surface. This type of support has strong corrosion resistance, strong wind resistance, resistance to huge waves, and the ability to prevent biological adhesion.

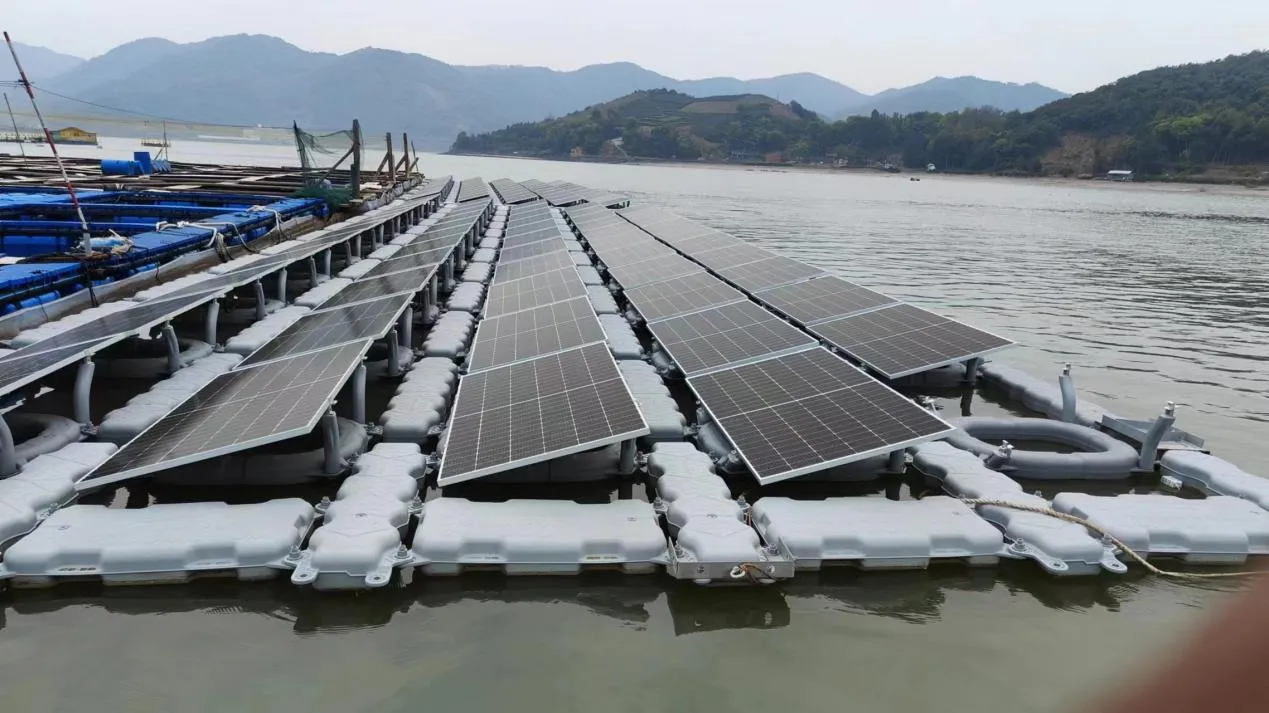

Offshore solar floating support system
System Components and Materials
A.floaters
Raw materials of our floaters is high density polyethylene.High-density polyethylene material features high corrosion resistance, strong weather resistance and UV aging resistance.
B.Brackets
The material of our brackets is high density polyethylene too .This material has excellent corrosion resistance and can prevent rust for up to 25 years.
C.Bolts,nuts,and washers
Our nuts, bolts and washers are made of 304 stainless steel.
D.The connection method of the floats is plug-in type.
E.Supported solar modules' types
The size of our floats meets the requirements of all the solar modules.
|
Solar panel |
power |
size |
|
Solar panel |
500w-600w |
2278mm*1134mm*35mm/30mm |
|
Solar panel |
600W-720w |
2382mm*1303mm*35mm/30mm |
|
Solar panel |
2465mm*1303mm*35mm/33mm |
Components of offshore solar floating support system
|
Product name |
length |
width |
Product code |
picture |
|
Walkway floater |
2500mm |
550mm |
FN-FT-ZDFT-P-0201 |
|
|
Main floater |
2000mm |
1200mm |
FN-FT-ZJFT-P-0201 |
|
|
Equipment floater |
2000mm |
700mm |
FN-FT-SBFT-P-0201 |
|
|
Connecting floater |
680mm |
400mm |
FN-FT-LJFT-P-0201 |
|
3.Key features and advantages

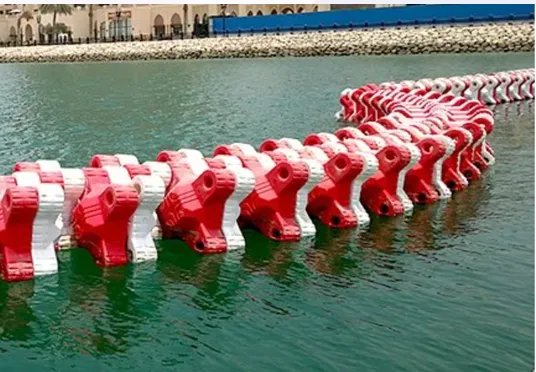

A.Breakwater solution:the entire breakwater system refracts most of the waves, and then forms a relatively still water environment as an effective shelter area, which provides a guarantee for the long-term stable and safe operation of the floating photovoltaic array.
B.Anti-slip walkway
special anti-slip walkway solves the problem of water surface shaking, improve the convenience and safety of operation and maintenance.
C.Sufficient buoyancy
Our floating bodies are wider and taller, so they have greater buoyancy.
D.Strong corrosion resistance
All exposed parts have been tested for 1,000 hours salt spray resistance.
Installation,operation and maintenance
A.Modular design, on-site installation
Because it is a modular design, there is no need for large-scale construction machinery. Just assemble the floats and solar modules on the shore.

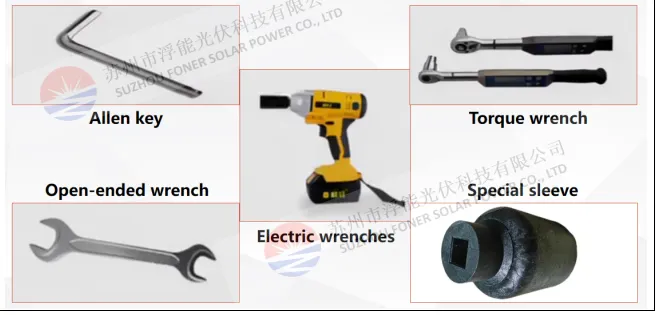

Tools used in offshore solar floating support system installation
B.The number of installation workers and work efficiency
Under normal circumstances, a team of 15 people can install 150KW per day.
C.Convenience of operation and maintenance
When solar modules are damaged or need to be cleaned, our walkway is very suitable for maintenance personnel to operate conveniently, as there are personnel operation and maintenance walkways. Moreover, the floating body has a buoyancy of 150 kilograms per square meter.
Specification Summary Table
|
Item |
parameters |
|
Supported solar modules |
182/210 mono crystalline silicon module, suitable for power range 500W-720W |
|
System design life |
≥25years |
|
Raw materials of floats |
HDPE(high density polyethylene) |
|
Brackets materials |
HDPE(high density polyethylene) |
|
Wind resistance grade |
50m/s |
|
Snow load |
1.5KN/㎡ |
|
Installation tilt angle |
0⁰-15⁰ customized available |
|
Maximum bearing load of floats |
150kg/㎡ |
Production capacity
A.The annual production capacity of our factory reaches 200MW.
B.Our products are processed by blow molding.
C.The core element of our product is the formula of the proportion of masterbatch and modified material.
Certification and quality control
 |
 |
To ensure the quality of our floating solar mounting system solution,we have passed test such as TUV and wind tunnel experiments.
A.We have obtained ISO9001 quality certification and TUV Rheinland certification from Germany.
B.We have wind tunnel test reports and load test reports.
Why choose our offshore solar floating support system?
A.Due to the water evaporation cooling,solar module can generate over 5% more power generation.
B.Ecological influence:Floating solar project can help to reduce the evaporation of water.
C.Environmental protection performance:Floaters are made of environmentally friendly food grade HDPE.
D. Professional design team
E. The product has undergone professional certification TUV and ISO9001.
F. The system has undergone wind tunnel tests.
